| Brand Name: | HANGTUO |
| Model Number: | VE5 |
| MOQ: | 1 Pc |
| harga: | 145~330 USD/PC |
| Delivery Time: | 15 ~ 30 hari |

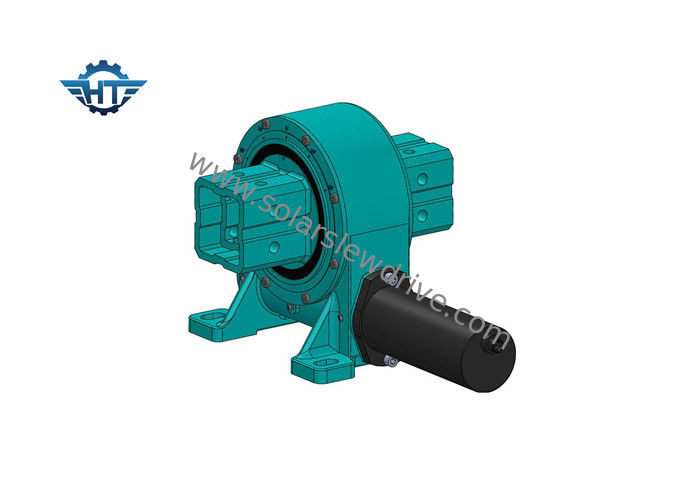

Satu Sumbu Solar Slew Drive, Struktur Gear Cacing Kunci Mandiri IP66 Untuk Sistem Pelacakan Surya
Deskripsi
Vertical single axis slew drive, commonly referred as a worm drive or slewing bearings, is a complete, ready to install system that consists of gear or slewing ring bearing, worm, base, and completely enclosed housing. Vertikal sumbu tunggal slew drive, biasanya disebut sebagai worm drive atau bantalan slewing, adalah lengkap, siap untuk menginstal sistem yang terdiri dari bantalan roda gigi atau slewing, cacing, dasar, dan perumahan tertutup sepenuhnya. It can be customized with hydraulic or electric motors, planetary gearboxes. Itu dapat disesuaikan dengan motor hidrolik atau listrik, gearbox planetary.
fitur
1. Rotasi 360 derajat
2. IP66
3. Mengunci diri
4. Bekas minyak bekas
5. Instalasi sederhana
6. Perawatan rendah
7. Pemanfaatan ruang rasional
8. Metode awal dan berhenti yang mudah dan lancar
9. Torsi memegang tinggi
Parameter Kinerja Drive Slew Vertikal
| Model | Perbandingan | Dinilai Torsi Output | Memiringkan Torsi | Beban aksial | Beban Radial | Memegang Torsi | Efisiensi | Presisi | Mengunci sendiri | Bobot |
| Nm | Nm | kN | kN | Nm | gelar | Iya | kg | |||
| 3 " | 31: 1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Iya | 13kg |
| 5 " | 37: 1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Iya | 18kg |
| 7 " | 57: 1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Iya | 28kg |
| 8 " | 51: 1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Iya | 35kg |
| 9 " | 61: 1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Iya | 51kg |
| 12 " | 78: 1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Iya | 61kg |
| 14 " | 85: 1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Iya | 78 kg |
| 17 " | 102: 1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Iya | 105 kg |
| 21 " | 125: 1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Iya | 185 kg |
| 25 " | 150: 1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Iya | 244 kg |
