| Brand Name: | HangTuo |
| Model Number: | VE6 |
| MOQ: | 1 potong |
| harga: | USD 100~330/ pc |
| Delivery Time: | 15 ~ 45 hari |
| Payment Terms: | L / C, T / T, Western Union |

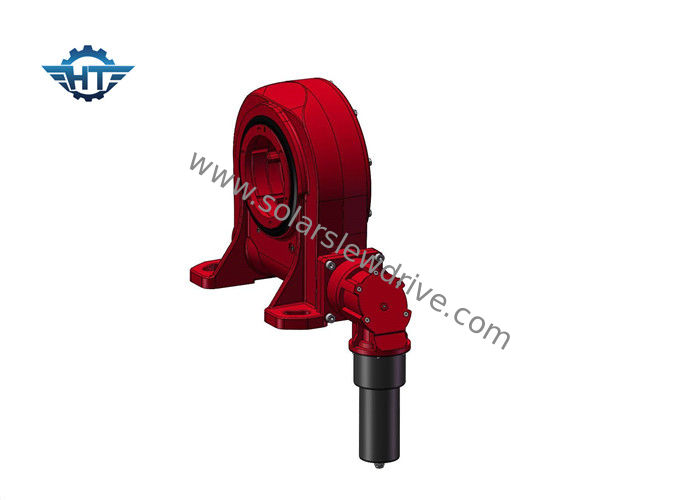

VE6 Vertikal Solar Slew Drive Didukung Dengan Hourglass Worm Gear Untuk Sistem Pelacakan PV
Deskripsi
Slewing drive VE6, yang memiliki desain kompak dengan torsi tinggi untuk sistem pelacakan surya sumbu tunggal, ditenagai dengan teknologi cacing jam pasir untuk torsi gigi maksimum dan rotasi paling halus.
The standard slew drives are fitted with an eclosed housing and single self locking hourglass worm shaft. Slew drive standar dilengkapi dengan housing tertutup dan poros cacing jam pasir pengunci sendiri. Once the power source input is returned to neutral, the worm shaft will lock the load into position without requiring any external braking device. Setelah input sumber daya dikembalikan ke netral, poros cacing akan mengunci beban ke posisinya tanpa memerlukan perangkat pengereman eksternal.
Aplikasi
Typical slew drive applications include solar industry, truck cranes, man lifts, and utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger derricks and automotive lifts, but the slew drives are used in many other applications requiring load holding and rotational capability. Aplikasi penggerak slew drive yang khas meliputi industri tenaga surya, crane truk, lift manusia, dan peralatan utilitas, attachment hidraulik, peralatan tool oli, crane kelautan, handler ban, penggali derek dan lift otomotif, tetapi slew drive digunakan di banyak aplikasi lain yang membutuhkan pemuatan muatan dan kemampuan rotasi. We offer different slew drive models with different moment load capacities. Kami menawarkan model slew drive yang berbeda dengan kapasitas beban momen yang berbeda.
Parameter Kinerja Model VE
| Model | Dinilai Output Torsi (Nm) | Memegang Torsi (Nm) | TiltingTorque (Nm) | Beban aksial (kn) | Beban Radial (kn) | Perbandingan | Presisi (derajat) | Presisi (°) | AKU P | Mengunci sendiri | Berat (kg) |
| 3 " | 600 | 1800 | 1500 | 22 | 15 | 31: 1 | 40% | ≤0.1 | 66 | Iya | 12kg |
| 5 " | 800 | 9200 | 5000 | 16 | 27 | 37: 1 | 40% | ≤0.1 | 66 | Iya | 18kg |
| 7 " | 1750 | 13200 | 7000 | 34 | 58 | 57: 1 | 40% | ≤0.1 | 66 | Iya | 32kg |
| 8 " | 2250 | 20400 | 11200 | 50 | 80 | 51: 1 | 40% | ≤0.1 | 66 | Iya | 28kg |
| 9 " | 4300 | 30800 | 16000 | 60 | 130 | 61: 1 | 40% | ≤0.1 | 66 | Iya | 52kg |
| 12 " | 5600 | 40560 | 25000 | 77 | 190 | 78: 1 | 40% | ≤0.1 | 66 | Iya | 65kg |
| 14 " | 6750 | 44200 | 48000 | 110 | 230 | 85: 1 | 40% | ≤0.1 | 66 | Iya | 88 kg |
| 17 " | 9460 | 53040 | 67000 | 142 | 390 | 102: 1 | 40% | ≤0.1 | 66 | Iya | 135 kg |
| 21 " | 16000 | 65000 | 89000 | 337 | 640 | 125: 1 | 40% | ≤0.1 | 66 | Iya | 192 kg |
| 25 " | 21450 | 89000 | 112000 | 476 | 950 | 150: 1 | 40% | ≤0.1 | 66 | Iya | 251 kg |
