| Brand Name: | HANGTUO |
| Model Number: | VE5 |
| MOQ: | 1 pc |
| harga: | 100~400 USD/PC |
| Delivery Time: | 15 ~ 30 hari |

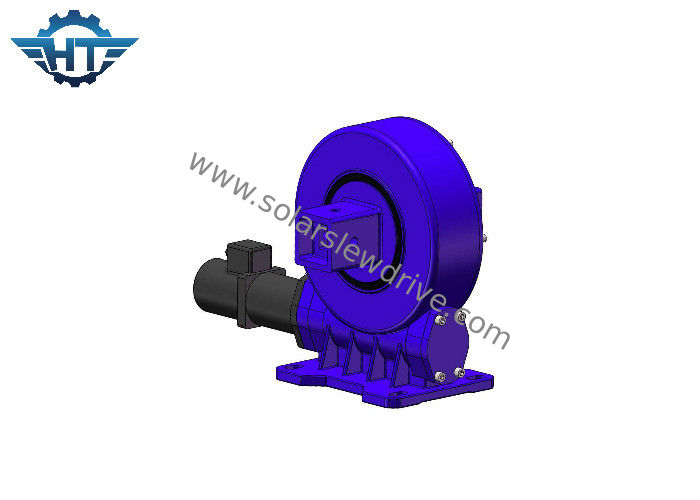

Solar Small Slewing Drive Gearbox Untuk Sistem Pelacakan Surya Cocok Untuk Lingkungan Yang Keras
Deskripsi
Perusahaan kami dapat menyediakan semua jenis slew drive dan bantalan slewing yang digunakan dalam sistem pelacakan surya, pengangkut palet, truk, gantry crane yang dapat dipindahkan, pengangkut straddle, mobile crane harbor, pengolahan limbah, dan sebagainya.
fitur
Parameter Kinerja Drive Slew Vertikal
| Model | Perbandingan | Dinilai Torsi Output (Nm) | Memiringkan Torsi (Nm) | Memegang Torsi (Nm) | Beban aksial (KN) | Beban Radial (KN) | Efisiensi | Presisi (°) | Mengunci sendiri | Bobot (kg) |
| 3 " | 31: 1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Iya | 12 |
| 5 " | 37: 1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Iya | 18 |
| 7 " | 57: 1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Iya | 32 |
| 8 " | 51: 1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Iya | 28 |
| 9 " | 61: 1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Iya | 52 |
| 12 " | 78: 1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Iya | 65 |
| 14 " | 85: 1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Iya | 88 |
| 17 " | 102: 1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Iya | 135 |
| 21 " | 125: 1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Iya | 192 |
| 25 " | 150: 1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Iya | 251 |
