| Brand Name: | HangTuo |
| Model Number: | SE1 ~ 25 |
| MOQ: | Bagian 1 |
| harga: | USD 280~504 / pc |
| Delivery Time: | 15 ~ 45 hari |
| Payment Terms: | L/C, T/T, Western Union |
Ada banyak aplikasi di mana drive slewing dapat dimanfaatkan, terutama karena sangat cocok untuk aplikasi yang membutuhkan daya penahan beban dan kekuatan torsi rotasi.
Aplikasi penggerak slewing yang umum termasuk tetapi tidak terbatas pada: pelacak surya, turbin angin, lift manusia, mesin hidrolik, gagang teleskopik, derek penggali, lift, crane, peralatan pengeboran, peralatan militer, sistem robot.
Kami memiliki berbagai macam slewing drive dengan rentang torsi output dari 221 lbf.ft hingga 15800 lbf.ft.

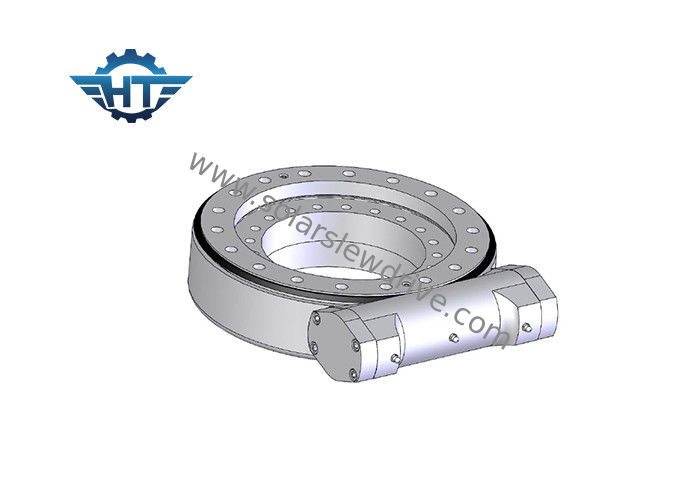

Cincin slewing dengan poros cacing integral menjadi semakin populer karena kesederhanaan pemasangan dan digunakan dalam derek yang dipasang di truk, turbin angin kecil, platform akses, meja putar, perangkat pelacakan surya, sistem komunikasi satelit, dan perangkat penanganan bahan sederhana. Unit presisi dan nol serangan balik yang tinggi juga diterapkan pada proyek tertentu. Selain itu, kami dapat menawarkan berbagai motor listrik dan hidrolik serta gearbox yang cocok.
Seri Vertikal
| Model | Perbandingan | Dinilai Torsi Output | Memiringkan Torsi | Beban aksial | Beban Radial | Memegang Torsi | Efisiensi | Presisi | Mengunci sendiri | Berat |
| Nm | Nm | kN | kN | Nm | gelar | iya nih | kg | |||
| 3 " | 31: 1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | iya nih | 13kg |
| 5 " | 37: 1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | iya nih | 18kg |
| 7 " | 57: 1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | iya nih | 28kg |
| 8 " | 51: 1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | iya nih | 35kg |
| 9 " | 61: 1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | iya nih | 51kg |
| 12 " | 78: 1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | iya nih | 61kg |
| 14 " | 85: 1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | iya nih | 78 kg |
| 17 " | 102: 1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | iya nih | 105 kg |
| 21 " | 125: 1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | iya nih | 185 kg |
| 25 " | 150: 1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | iya nih | 244 kg |
Seri Horisontal
| Model | Perbandingan | Dinilai Torsi Output | Memiringkan Torsi | Memegang Torsi | Beban aksial | Beban Radial | Efisiensi | Presisi | Mengunci sendiri | Berat |
| Nm | Nm | Nm | kN | kN | gelar | iya nih | kg | |||
| 1 " | 31: 1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | iya nih | 6 |
| 3 " | 31: 1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | iya nih | 9 |
| 5 " | 37: 1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | iya nih | 14 |
| 7 " | 57: 1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | iya nih | 23 |
| 9 " | 61: 1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | iya nih | 44 |
| 12 " | 78: 1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | iya nih | 51 |
| 14 " | 85: 1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | iya nih | 62 |
| 17 " | 102: 1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | iya nih | 85 |
| 21 " | 125: 1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | iya nih | 141 |
| 25 " | 150: 1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | iya nih | 182 |
Seri sumbu ganda
| Model | Perbandingan | Dinilai Torsi Output | Memiringkan Torsi | Beban aksial | Beban Radial | Memegang Torsi | Efisiensi | Presisi | Mengunci sendiri | Berat |
| Nm | Nm | kN | kN | Nm | gelar | iya nih | kg | |||
| 3 " | 31: 1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | iya nih | 21kg |
| 5 " | 37: 1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | iya nih | 32kg |
| 7 " | 57: 1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | iya nih | 54kg |
| 9 " | 61: 1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | iya nih | 88kg |
| 12 " | 78: 1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | iya nih | 157 kg |
| 14 " | 85: 1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | iya nih | 214kg |
| 17 " | 102: 1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | iya nih | 315kg |
| 21 " | 125: 1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | iya nih | 481kg |
| 25 " | 150: 1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | iya nih | 682 kg |
Seri Sumbu Ganda
| Model | Perbandingan | Dinilai Torsi Output | Memiringkan Torsi | Beban aksial | Beban Radial | Memegang Torsi | Efisiensi | Presisi | Mengunci sendiri | Berat |
| Nm | Nm | kN | kN | Nm | gelar | iya nih | kg | |||
| 3 " | 31: 1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | iya nih | 21kg |
| 5 " | 37: 1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | iya nih | 32kg |
| 7 " | 57: 1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | iya nih | 54kg |
| 9 " | 61: 1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | iya nih | 88kg |
| 12 " | 78: 1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | iya nih | 157 kg |
| 14 " | 85: 1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | iya nih | 214kg |
| 17 " | 102: 1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | iya nih | 315kg |
| 21 " | 125: 1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | iya nih | 481kg |
| 25 " | 150: 1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | iya nih | 682 kg |
Seri Cacing Ganda
| Model | Perbandingan | Dinilai Torsi Output | Memiringkan Torsi | Beban aksial | Beban Radial | Memegang Torsi | Efisiensi | Presisi | Mengunci sendiri | Berat | |
| Nm | Nm | kN | kN | Nm | gelar | iya nih | kg | ||||
| 14 " | 85: 1 | 12225 | 68000 | 340 | 130 | 110000 | 40% | ≤0.1 | iya nih | 70 kg | |
| 17 " | 102: 1 | 18525 | 160000 | 480 | 190 | 131200 | 40% | ≤0.1 | iya nih | 102 kg | |
| 21 " | 125: 1 | 30750 | 240000 | 980 | 390 | 162000 | 40% | ≤0.1 | iya nih | 153 kg | |
| 25 " | 150: 1 | 36750 | 360000 | 1200 | 430 | 178000 | 40% | ≤0.1 | iya nih | 202 kg | |
