| Brand Name: | HangTuo |
| Model Number: | SE1 "~ 25" |
| MOQ: | Bagian 1 |
| harga: | USD 280~504 / pc |
| Delivery Time: | 15 ~ 45 hari |
| Payment Terms: | L/C, T/T, Western Union |

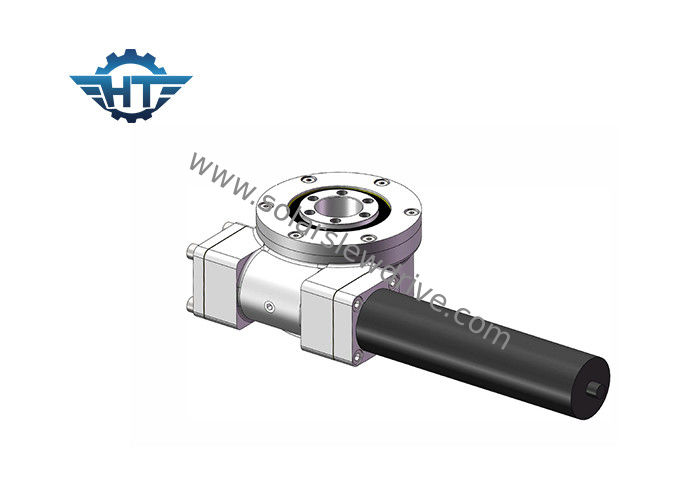

Slewing drive kami hadir dalam berbagai ukuran model mulai dari 1 inci hingga 25 inci, kinerja berkisar antara 0,3 hingga 21 kNm. Kami juga memiliki drive slewing dari serangan balik yang berbeda. Drive sangat cocok untuk aplikasi yang membutuhkan penahan beban dan torsi rotasi dari kotak roda gigi yang sama. Mereka juga dapat dibuat dengan dua sumbu rotasi, (memutar sumbu pada saat yang sama) atau dengan drive ganda pada sumbu yang sama, (dua ulir yang menggerakkan gigi cincin yang sama dalam satu sumbu), dan dapat dipasang secara vertikal, horizontal atau kedua.
Seri Vertikal
| Model | Perbandingan | Dinilai Torsi Output | Memiringkan Torsi | Beban aksial | Beban Radial | Memegang Torsi | Efisiensi | Presisi | Mengunci sendiri | Berat |
| Nm | Nm | kN | kN | Nm | gelar | iya nih | kg | |||
| 3 " | 31: 1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | iya nih | 13kg |
| 5 " | 37: 1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | iya nih | 18kg |
| 7 " | 57: 1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | iya nih | 28kg |
| 8 " | 51: 1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | iya nih | 35kg |
| 9 " | 61: 1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | iya nih | 51kg |
| 12 " | 78: 1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | iya nih | 61kg |
| 14 " | 85: 1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | iya nih | 78 kg |
| 17 " | 102: 1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | iya nih | 105 kg |
| 21 " | 125: 1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | iya nih | 185 kg |
| 25 " | 150: 1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | iya nih | 244 kg |
Seri Horisontal
| Model | Perbandingan | Dinilai Torsi Output | Memiringkan Torsi | Memegang Torsi | Beban aksial | Beban Radial | Efisiensi | Presisi | Mengunci sendiri | Berat |
| Nm | Nm | Nm | kN | kN | gelar | iya nih | kg | |||
| 1 " | 31: 1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | iya nih | 6 |
| 3 " | 31: 1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | iya nih | 9 |
| 5 " | 37: 1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | iya nih | 14 |
| 7 " | 57: 1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | iya nih | 23 |
| 9 " | 61: 1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | iya nih | 44 |
| 12 " | 78: 1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | iya nih | 51 |
| 14 " | 85: 1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | iya nih | 62 |
| 17 " | 102: 1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | iya nih | 85 |
| 21 " | 125: 1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | iya nih | 141 |
| 25 " | 150: 1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | iya nih | 182 |
Seri sumbu ganda
| Model | Perbandingan | Dinilai Torsi Output | Memiringkan Torsi | Beban aksial | Beban Radial | Memegang Torsi | Efisiensi | Presisi | Mengunci sendiri | Berat |
| Nm | Nm | kN | kN | Nm | gelar | iya nih | kg | |||
| 3 " | 31: 1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | iya nih | 21kg |
| 5 " | 37: 1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | iya nih | 32kg |
| 7 " | 57: 1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | iya nih | 54kg |
| 9 " | 61: 1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | iya nih | 88kg |
| 12 " | 78: 1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | iya nih | 157 kg |
| 14 " | 85: 1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | iya nih | 214kg |
| 17 " | 102: 1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | iya nih | 315kg |
| 21 " | 125: 1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | iya nih | 481kg |
| 25 " | 150: 1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | iya nih | 682 kg |
Seri Cacing Ganda
| Model | Perbandingan | Dinilai Torsi Output | Memiringkan Torsi | Beban aksial | Beban Radial | Memegang Torsi | Efisiensi | Presisi | Mengunci sendiri | Berat | |
| Nm | Nm | kN | kN | Nm | gelar | iya nih | kg | ||||
| 14 " | 85: 1 | 12225 | 68000 | 340 | 130 | 110000 | 40% | ≤0.1 | iya nih | 70 kg | |
| 17 " | 102: 1 | 18525 | 160000 | 480 | 190 | 131200 | 40% | ≤0.1 | iya nih | 102 kg | |
| 21 " | 125: 1 | 30750 | 240000 | 980 | 390 | 162000 | 40% | ≤0.1 | iya nih | 153 kg | |
| 25 " | 150: 1 | 36750 | 360000 | 1200 | 430 | 178000 | 40% | ≤0.1 | iya nih | 202 kg | |
